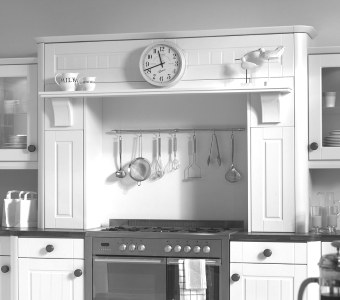

BELLA Over Mantle Kit

Overnmantle kits are available for 1000mm, 1100mm & 1200mm apertures

Suitable to fit up to 330mm deep wall units (can be cut down)

if you require a different size mantle, please inquire as it is possible to get parts

Cabinets are not included

The Bella range is made from 18mm MDF and vinyl wrapped to offer a high quality hard wearing finish.

Supplied with manufacturer's 6 year warranty.

Full range of matching accessories available

View all BELLA Colour Here

What`s included:

• 2 - 715x296 Door
• 3 - 283 x 530 door (1000 aperture)
• 3 - 283 x 563 door (1100 aperture)
• 3 - 283 x 596 door (1200 aperture)
• 1 - 1600 x 360 Front Fascia (1000 aperture)
• 1 - 1700 x 360 Front Fascia (1100 aperture)
• 1 - 1800 x 360 Front Fascia (1200 aperture)
• 1 - 1530 x 18h x 150d Shelf-top (1000 aperture)
• 1 - 1630 x 18h x 150d Shelf-top (1100 aperture)
• 1 - 1730 x 18h x 150d Shelf-top (1200 aperture)
• 1 - 1490 x 18h x 130d Shelf-base (1000 aperture)
• 1 - 1590 x 18h x 130d Shelf-base (1100 aperture)
• 1 - 1690 x 18h x 130d Shelf-base (1200 aperture)
• 1 - Pair of Mantle Corbels 195H x 115W x 86Dmm
• 1 - 2000 Length of Cornice
• 1 - 1200 Cornice (use for returns)
• 2 - 1390 Length of multi purpose rail
• 2 - 1390 x 433 Sq Edge Panels
• 1 - 850 x 470 Sq Edge Notched Panel (Left)
• 1 - 850 x 470 Sq Edge Notched Panel (Right)
• 1 - 300 x 470 Sq Edge Panel Base
• 1 - 1000/1100/1200 x 452 Extractor Panel Sq Edge (Not Foiled)
• Cabinets are not included

BELLA Over Mantle Kit guide > (PDF open in a new window or with Adobe depending on your preferences)

This product is made to order and return is not possible.
