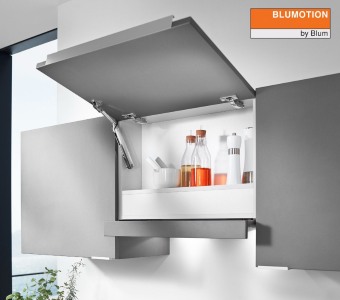

AVENTOS HK-Xs stay lift set

Thanks to its slim construction, AVENTOS HK-XS provides enormous scope for the design of tall units and wall cabinets. Even cabinets with little depth are now possible. The solution has a symmetrical lift mechanism. For small and light fronts, use a single lift mechanism on one side of the cabinet. For larger and heavier fronts, attach a lift mechanism to both sides.

For cabinet heights of 240 to 600mm. Cabinet widths depend on the power factor. Suitable for internal depths of at least 100mm.

Just 3 types of lift mechanisms are needed to cover all applications. The lift mechanisms and front fixing brackets have been designed for symmetrical use.

For wooden fronts and fronts with wide or narrow aluminium frames.

• Brand: BLUM
• Finish: Nickel Plated
• Application: Stay Lift System
• Fixing method: Screw-on
• Min. Int. Cab. Depth: 125mm
• Min. Int. Cab. Height: 200mm
• 200 – 1000 Power Factor — to fit fronts 283 high up to 596 wide
• 500 – 1500 Power Factor — to fit fronts 283 high up to 796 wide
• 800 – 1800 Power Factor — to fit fronts 283 high from 800 to 1196 wide — 355 high up to 996 wide
• 1 set is required per cabinet
• If you are not sure about which power factor, please email your cabinet dimensions and type of door you are using.

What's Included

• 1 x lift mechanism
• 1 x cabinet fixing
• 1 x front fixing bracket
• 2 x 71B3550 hinges
• 2 x 175H3100 mounting plates
• 1 x Instructions

AVENTOS HK-Xs installation guides > (PDF open in a new window)

This product is in stock, return is possible with a 25% re-stock fee and transport at your own cost.
